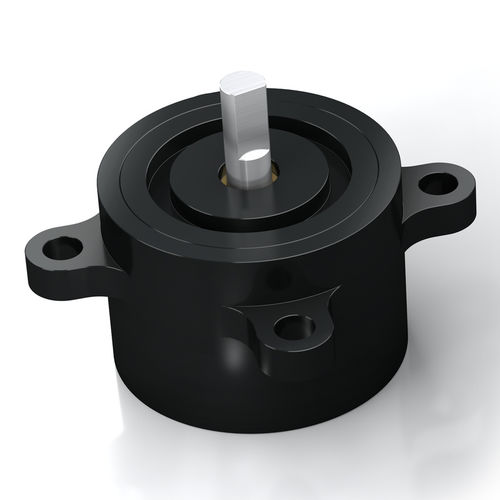

Rotary damper FRT-F2/K2

mechanicalbidirectional

For very long service life extension Continuous Rotation The damping direction of FRT F2/K2 and FRN-F2/K2 is either the right, left or two-sided rotation. With a damping torque of up to 400 Ncm, this product family can even handle heavy components. These ACE rotary dampers can decelerate directly in the pivot point or linear through a gear and gear rack. They are maintenance-free and ready-to-install. Damping direction bidirectional Construction size Ø 40 mm Rotational speed max. 50 rpm Lifetime 50,000 cycles (1 cycle = 360° left-hand, 360° right-hand). Even after this time, the dampers still produce over approx. 80 % of their original damping moment. The service life may be significantly higher or lower, depending on the application. Operating temperature range 0 °C to 50 °C Material Outer body: plastic; Shaft: steel Mounting in any position Rotary Dampers - FRT-F2/K2 and FRN-F2/K2 Swivel systems for machine keyboards ACE rotary dampers protect the keyboard. To provide long term protection in arduous and often dirty industrial applications (and also to protect against unauthorised access) the machine keyboard is installed in a lockable and pivoted housing...
