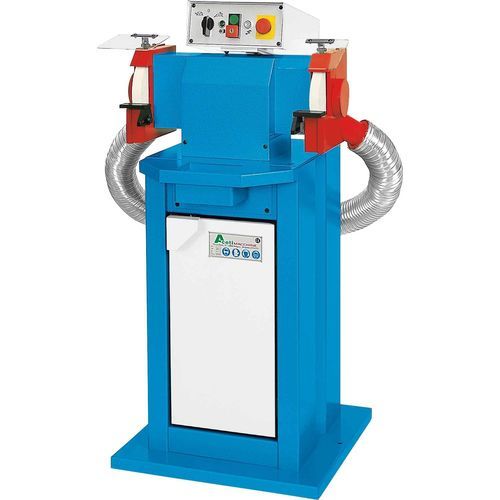

External cylindrical grinding machine ART.105

workpieceautomatic

Power supply 400 | 50 | 3 Volt|Hz|Phase Acoustic emission 69 dB Overall dimension (Width x Depth x Height) 650 x 610 x H. 1200 mm Weight standard machine 110 kg Grinder unit Grinding wheel maximum external size ø 200 mm Motor shaft diameter ø 20 mm Grinding wheel maximum wide size 25 mm Peripheral speed 30 - 15 m/sec Base Strong base with anti-vibration rubbers at the base and a useful shelf for tools inside. Electrical panel Low voltage electric controls with padlock device integrated in the main electric switch. Electronic brake card Emergency stop with electronic motor braking with safety anti-reset function. Motor Motor 2 speeds Locking accessories Locking and reducing steel flange for grinding wheel with spacers and clamping nuts. Support Plan special adjustable support according to the diameter of the grinding wheel. Disc grinding wheel Grinding wheel disc mounted on the machine ready for use. Grinder cover Cover with predisposition connection system with predisposition connection system. Anti-spark repair Transparent protection arrester with friction joint.
