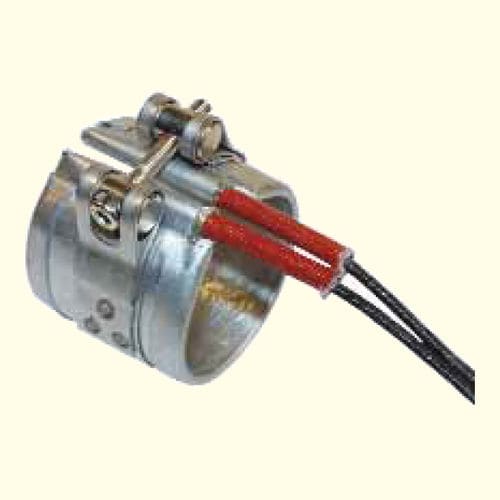

Standard band heater

standard band heater
standard band heater
Add to favorites
Compare this product


Characteristics

Protection level
standard

Description

Model designed for heating applications requiring high watt density. Max. working temperature over the surface of the heater : 340°C, depending on the working conditions. Max. watt density over the surface of the heater: 8 W/cm²· Diameter : 50 to 150 mm. Height: 30 to 111 mm. Thickness: 3 mm Sheath metal : aluminized steel. Electric insulation with mica. Connection : Wire connection coming from the thickness. p 10. Clamping with straps fitted with barrel nuts and M4 screws, lenght according to the diameter of the heater. Standard clamping gap of the heater: 5 mm
