Infrared emitter ceramic
Add to favorites
Compare this product
Characteristics
- Type
- infrared
- Technology
- ceramic
Description

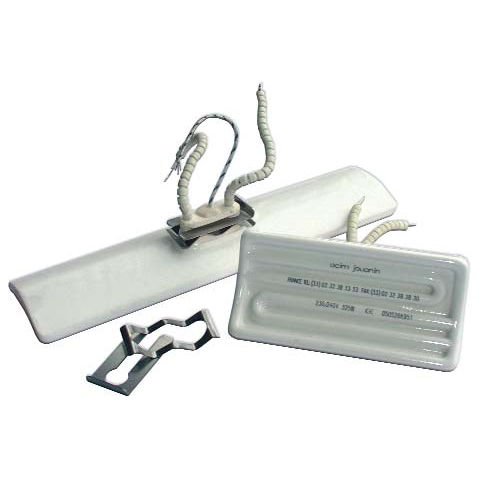

- Range of products available in various shapes :
Curved or flat
Rectangular or square
- Resistance wire around which is cast a ceramic body.
- Emitters are glazed to protect them from corrosive aggressions.
- Emitter provided with a mounting element on which we have put a spring and an stainless steel clip to fix the element.
- Two-leads connection protected by ceramic pearls.
- Length 100 mm ± 10 mm.
- Some emitters are provided with a thermocouple, type J or K, to optimize the temperature of the emitter.
- Thermocouple with a nickel core wire with fiberglass silk silicone, cast in the ceramic, nearby the emitter plane.
- Voltage : 230 V single phase.
- Other voltages available on request.
- Approval :UL for all the quoted ceramic emitters.
