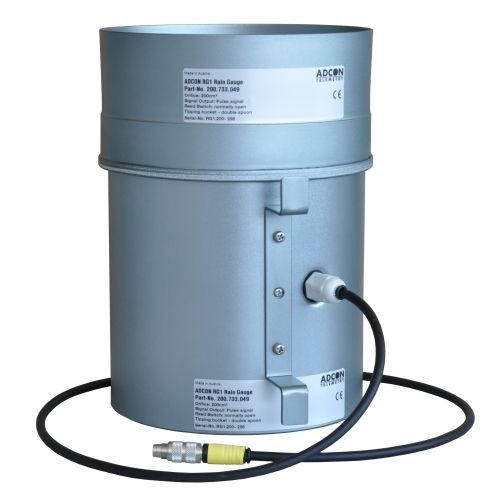

200 cm² rain gauge RG1

Brand new design, fully made of aluminum: accurate, robust, with a long service life The Adcon RG1 was designed as a universal rain gauge, that meets the need of most applications. This gauge is built to last, in agriculture as well as in hydrographical or meteorological applications and in rough environments. This version of the RG1 weighs in at less than half a kilo and is suited for both mast and floor mounting. The measurement is done by a double tipping bucket system that's factory calibrated to remain within a <2% accuracy in rain falls up to 60mm per hour. The steep angle of the buckets makes water run of quickly and thus prevents the build-up of residue, like sand or dust in the buckets. Water is collected through a funnel with an orifice of 200 cm². Leaves and bird droppings are kept out of it by means of an aluminum filter, that can easily be taken out for cleaning. The funnel attaches to the body with a bayonet-style lock, which prevents the funnel from being shaken off in heavy winds.
