Digital output card APCIe-2032

PCI Expresssafety32 digital outputs

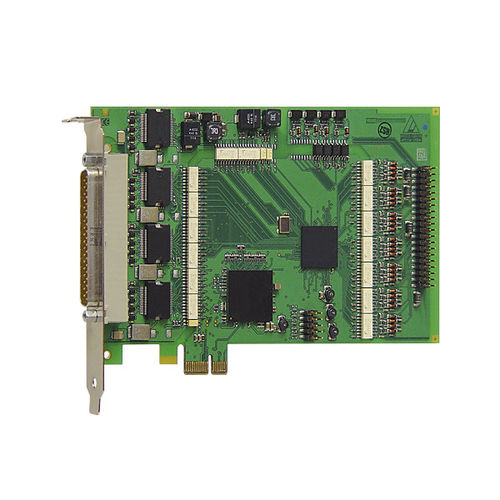

The PCI-Express board with 32 digital outputs APCIe-2032 has 32 digital outputs, 24 Vand a programmable watchdog. It is especially suited for applications like signal switching, ON/OFF monitoring of motors, lights etc., als interface to electromechanical relays, for automated test systems or as interface to machines in the harsh industrial environment. Features Connector and software compatible to the digital output board APCI-2023 for the PCI bus 32 digital outputs, 24 V, optically isolated Output current per channel: 500 mA Voltage range: 10 V to 36 V Diagnostic report, through status register at shortcircuits, overtemperature, voltage drop or watchdog Programmable watchdog for resetting the outputs to “0“, function release through software Interrupt triggered through error At Power-On the outputs are reset to “0“ Safety features Optical isolation 1000 V Creeping distance IEC 61010-1 Protection against fast transients (burst), overvoltage, electrostatic discharge and high-frequency EMI Maximum output current for 32 outputs 6 A typ. (2 x 3 A) 24 V power outputs with protection diodes and filters Self-resetting fuse (electronic fuse) Short-circuit current per output 1.5 A typ. Output capacitors against electromagnetic emissions Fast demagnetisation in case of inductive loads External 24 V voltage supply screened and fi ltered Shutdown logic: If the external 24 V voltage drops below 5 V, then the outputs are switched off.
