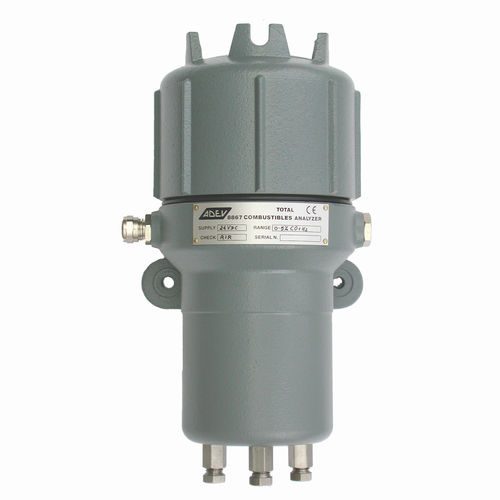

Total Combustibles Analyser
Based on catalytic combustion system, the 8867 provides accurate in line analysis of flue gas and other gases with Oxygen deficiency in order to determine the total concentration of combustible gases in the sample stream (typically expressed as CO, CH4 or H2 in accordance to the most representative component).
The air dilution port, combined with the ADEV special dilution system can ensure a perfect measure even in case of Oxygen deficiency (that is the most dangerous condition).
Fully proved technology, widely used in Iron & Steel plants and petrochemical plants.
Measureable Gas
Combustibles
Main Features
Extreme Roughness
No inner moving parts
Wet parts in AISI316 and glass
Resistant to the most severe industrial environments
High Performances
Possibility to measure the combustibles also in condition of Oxygen deficiency thanks to the special ADEV dilution system
Sensing unit temperature controlled
Insensitive to ambient temperature variations
Installation position and vibration don’t alter the accuracy and stability of the measure
Easy Maintenance
Modular construction
Fast access to the inner PCB just unscrewing the housing cap
Possibility to remove the entire sensing unit from the housing just by unscrewing 2 screws and leaving her housing connected to the sampling system.
