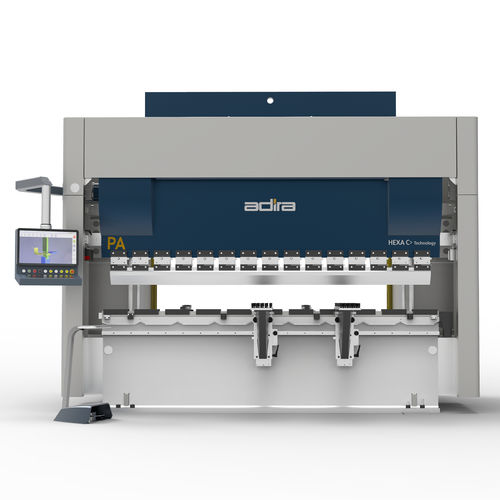

Electro-hydraulic press brake PA series

CNCprecision

The PA range offers high versatility and has a large number of optional accessories and equipment. The position of the ram is constantly monitored through guides, located at the ends of the HEXA-C frame, ensuring repeatability of 0.01 mm of ram positioning, irrespective of the tonnage, load position or oil temperature. • The HEXA-C® frame ensures better bending precision, given that the movable ram stays perfectly aligned with the fixed ram. • Greendrive System (PA PLUS) (PA PLUS) PA Benefits • Electric-hydraulic synchronisation of the movable ram (Y₁ and Y₂ axes); • Electric-hydraulic stoppage of the movable ram at 0.01 mm; • Comprehensive programming of the bending angle; • Movable ram slope programming (Y₁ ¹ Y₂); • Programming work speeds (Advance and Return) [10-100; • Start/Stop system that allows energy savings; • Standard machine equipped with crowning table, Lazersafe safety system and 2 axes on the back gauge with 4 back gauge stops (X/R). PA PLUS Benefits • GREENDRIVE SYSTEM – the system varies rotation of the electric motor, thus enabling: • Increased return speed (faster work cycle). • Residual motor rotation when the machine is stopped. • A significant reduction in energy consumption. Main Features • Increased return speed (faster work cycle). • The Greendrive system makes the motor turn very slowly, thereby reducing consumption when the operator is not pressing the pedal or using the machine. • A significant reduction in energy consumption. • Standard machine equipped with a crowning table, Lazersafe safety system and 4-axis back gauge (X/R/Z1/Z2).
