compact PC chassis / 5 slots / industrial / rugged
ADLMES9200-P1P ADL Embedded Solutions

{{requestButtons}}

Characteristics

  • Size:

    compact

  • Extension slots:

    5 slots

  • Other characteristics:

    industrial, rugged, IP65, MIL-STD

Description

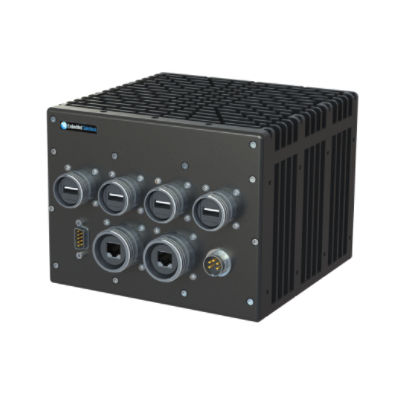

The rugged ADLMES9200 IP67 chassis is a successor to ADL’s popular ADLMES8200 IP65 chassis system. Improvements include lower weight, lower cost, quick and reliable IP67 integration for rugged military and industrial applications. Design features for military / defense system include MIL-STD 810 tolerance and MIL-STD 461/704/1275 compliance capability.

The ADLMES9200 is compatible with all ADL’s full range of Intel-based PC/104 and 3.5″ SBC’s which range from low-power ATOM to the latest Intel Core i5/i7 processors. Power supply options include ADL’s range of long-life (MTBF>500,000 hrs) with options for MIL-STD 461/704/1275 compliant filtering.

The uni-body design, with minimal, reliable EMC-compliant gasketing makes for better IP67 Ingress protection as well as assembly. Full design and development services are available for chassis customization, cabling, integration and modeling support.

Applications

Rugged Military / Defense: Ground Vehicles, Mission / Payload Computing, Secure Communications, SWaP-constrained systems for mobile, airborne and vehicle

Rugged Industrial: Oil and Gas, Road Construction and Inspection, Mining, Agriculture
