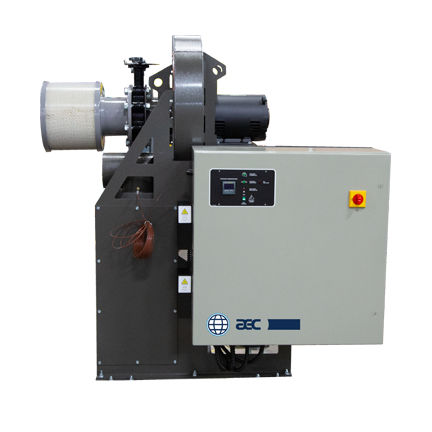

Hot air dryer HA-F series

continuousfor the food industryfor the pharmaceutical industry

The HA-F Series Hot Air Dryers feature a single blower that provides heated air to dry non-hygroscopic materials. Set point process temperature control to 300ºF (149ºC). 60-1500 CFM (102-2548 m3/hr) airflow available. HA-F Series Hot Air Dryers include one 12-foot length of high temperature flexible dryer hose. HA-F Series dryers should be used in conjunction with an appropriately-sized drying hopper. Standard Features • 460/3/60 supply voltage • 85-2500 CFM size range • Process temperatures up to 250°F (121°C) • NEMA 1 control panel • On/Off switch with pilot lights and over-temp indicator • Control panel features through-the-door main disconnect and pilot lights • Blower inlet filter and air throttling valve • Precision, adjustable 1/16 DIN temperature control with PID • Process air heaters are mounted externally and are a drawer-type which slides in and out • Low power consumption • The process air heater and other components are accessible from unit exterior and easy to service • Direct drive blowers-no belts, no sheaves • Simple maintenance and high reliability • Compact design • Air flow switch • Process air temperature thermocouple Optional Features • Insulated process hose • Electric heaters adjustable up to 350°F (175°C) assuring consistant drying of any resin type • Drying hopper exhaust filter • Other supply voltages available • Solid state relays • Casters (600 model and below) • Cyclonic dust filter
