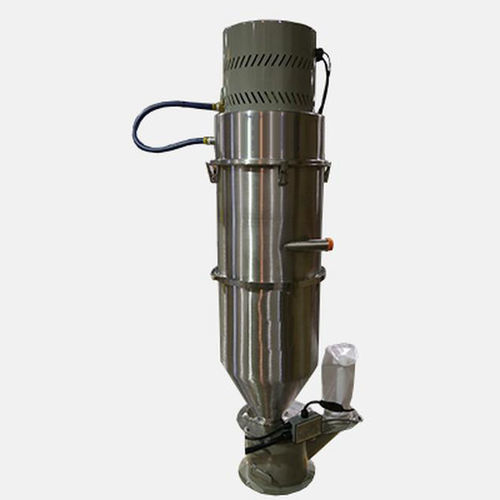

PHL Powder Hopper Loaders are used to convey free-flowing powder materials like PVC and PE from gaylords to machine hoppers, blenders, or surge bins. This unit can also be used to convey free-flowing dusty regrind.
Standard Features
• High-performance, three-stage centrifugal motor with electrical quick disconnect
• SR style vacuum receiver with stainless steel construction
• Twin bag filter assembly (acrylic-lined filter media)
• High flow blowback valve with accumulator and electrical quick disconnect
• Material demand/level sensor
• Dual tube aluminum pick-up wand with 10 feet of vinyl hose and two 2 hose clamps
• 1.5” OD tangential material inlet
• Series One controller
• Remote control box with 10’ cable
• 9-foot power cord
• Counter-weighted flapper assembly
• Acrylic lined filler bag
• Sound enclosure
• 115/1/60 supply voltage
Optional Features
• 230/1/50 or 230/1/60
• Brushless Motor
• 230/1/50 or 230/1/60
• Series 1 plus control with brushless motor
• Polyester lined filter bag
• Teflon lined filler bag
• CE certification
