three-phase current converter
AE890 CL series AENER ENERGIA

Add to MyDirectIndustry favorites

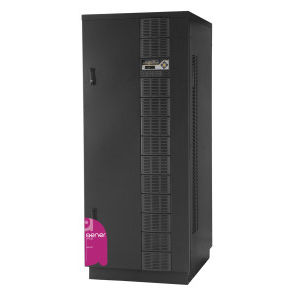

three-phase current converter three-phase current converter - AE890 CL series
{{requestButtons}}

Characteristics

  • Other characteristics:

    three-phase

  • Voltage:

    Max.: 400 V

    Min.: 220 V

  • Output power kVA:

    160 kVA, 200 kVA, 250 kVA, 300 kVA (217.54 hp)

Description

AE890 CL Series are three-phase in/three-phase out, IGBT rectifier,
technology based on intelligent power module, high input power factor and
low THDi.

• Low input current total harmonic distortion (THDi).
• High input power factor.
• High efficiency up to 94%.
• Cold start function.
• Static and maintenance by-pass switch.
• Output short circuit and overload protection.
• External REPO switch input.
• 128 events memory (128 events 3072 alarms).
• Clock and calendar (battery supported).
• Automatic battery test, remaining battery time indicator.
• Temperature compensated charge system.
• Modem configuration for dial.
• RS232 serial port and dry contact outputs.
• Transformerless UPS topology.
• Optional isolation transformer for input and output.
• Optional SNMP and MODBUS adaptors.
• Parallel operation up to 4 devices.
• Manufactured according to EC Directive; EN62040.
