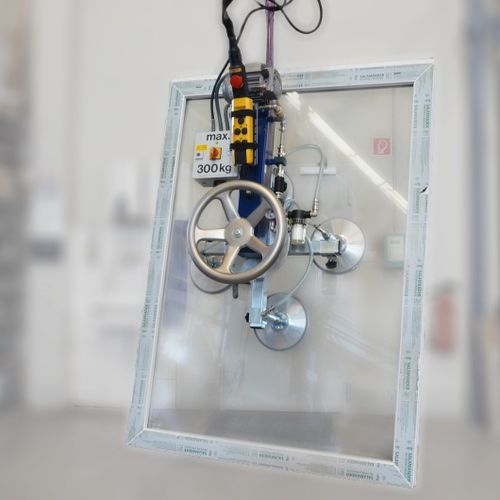

Glass plate vacuum lifting device AERO window 300 / 500

vertical

The AERO window glass lifters for vertical transport of glass panes and window elements weighing up to 300kg. Glass panes can be turned +/- 90 in 45° intervals with the aid of a hand wheel. An electronic warning system with acoustic signal is used to monitor the vacuum and the power supplied to the vacuum lift. A manual sliding valve with safety interlock prevents supported window elements from being released inadvertently. Glass lifters for vertical transport of glass panes and window elements weighing up to 300kg. Glass panes can be turned +/- 90 in 45° intervals with the aid of a hand wheel.An electronic warning system with acoustic signal is used to monitor the vacuum and the power supplied to the vacuum lift.A manual sliding valve with safety interlock prevents supported window elements from being released inadvertently. The intelligent electronic warning system (prescribed according to EN 13155) with ON/OFF switch reacts in case the vacuum pressure falls below 60% or there is a power outage. In such cases, an audible warning (buzzer) is provided to alert the user. The ON/OFF switch is positioned centrally on the warning system.
