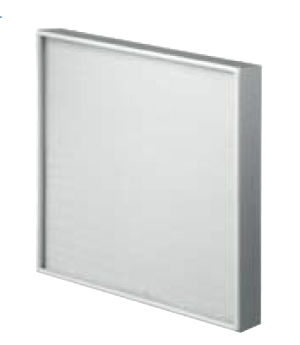

Air filter HLA-H series
panelfor clean roomsHEPA

Add to favorites

Compare this product

Go to the Afpro Filters website for more information

Characteristics

Designed for

air

Filtration element

panel

Applications

for clean rooms

Other characteristics

HEPA

Operating pressure

55 Pa, 60 Pa, 90 Pa, 100 Pa
(0.008 psi, 0.009 psi, 0.013 psi, 0.015 psi)

Flow

Min.: 150 m³/s
(5,297.2 ft³/s)

Max.: 2,700 m³/s
(95,349.6 ft³/s)

Description

Construction HEPA filters are constructed in various ways, depending on their application. AFPRO Filters endeavours to achieve the lowest possible resistance for each model, thus helping to reduce your energy costs. Application HEPA filters are used in hospitals and various other sectors, including the nuclear, food processing and semiconductor industries. HEPA filters are highly reliable, as they are subjected to strict quality checks and extensive testing. Specifications Application: Cleanrooms, operating rooms Frame: Extruded aluminum Spacers: Hotmelt Bonding: 2 component polyurethane Medium: Glass fibre paper Gasket: Gelseal Filterclass according to EN1822: E10, E11, H13, H14 Maximum/recommended final presssure drop: 500 Pa Maximum temperature: 70°C Maximum relative humidity: 90%
