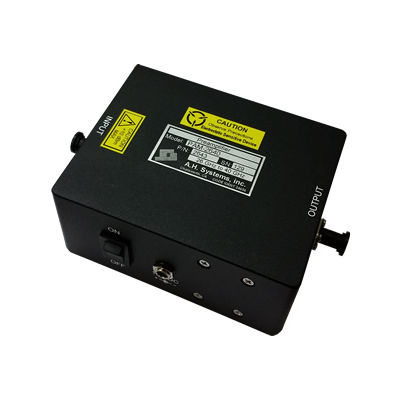

This preamplifier has a broad frequency range and high gain, designed to match the SAS-573 horn antenna. An ideal solution for improving system sensitivity.
Features
26 GHz to 40 GHz
Individually Calibrated (gain calibration included)
Low Noise, High Gain
Rugged Construction
Product Details
A.H. Systems' Preamplifier line is an excellent choice with a rugged design, no hassles with soldering your own power leads and they improve overall system sensitivity by at least 20 dB. All of A.H. Systems' Preamplifiers come with a 15-volt DC regulated power source. A low voltage indicator confidently allows you to power the amplifier with your own external 15-volt DC battery. This makes it a convenient choice for field measurements. See table above for amplifier specifications.
Antenna Specifications
PAM-2640 Preamplifier
Frequency Range - 26 GHz - 40 GHz
Gain (typical) - 20 dB
Gain (minimum) - 16 dB
Noise Figure - 4.5 dB
Flatness - +/- 1.4 dB
Maximum Power (dBm)
@ 1 dB compression - + 6 dBm
VSWR (typical) - less than 1.7:1
Input Power - 100/220 VAC regulated P/S
output: 15 VDC 180 mA
Connectors - 2.9mm(f) to 2.9mm(f)
