server PC / all-in-one / rack-mount / USB



  • Type:

    server, all-in-one, rack-mount

  • Ports:


  • Other characteristics:

    4U, rugged, ultra-rugged

  • Field:

    video-wall, for marine applications, video surveillance, commercial, network, for automation applications, for digital signage, industrial, for harsh environments

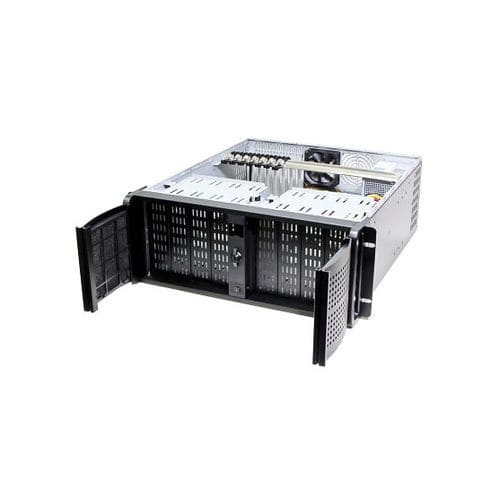

AICSYS Inc - RCK-408 is the best choice for the defense of security housing DVR Chassis to the degree of resistance harsh environment, or protection from ruggedized condition. It applies to any vulnerable or valuable asset, such as a person, dwelling, community, nation, or organization. We want to have control and the ability to monitor everything both in publicly and privately. RCK-408M for ATX motherboard model and RCK-408B for 14 slot backplane model, both model with extended depth version availible.

RCK-408 is designed for PC-based Digital Video Recording system or Storage Server System Intergration applications. It has a short depth, but provides a high capacity of (8) 5.25" external Drive bays, or up to (2) 5.25" and (10) 3.5" external Drive bays by mobile racks (optional), suitable to contain large amounts of data. These features allow for both ease of use as well as a high level of reliability which is essential for a security monitoring system. The RCK-408M maintains a balanced internal temperature with an 80mm ball-bearing fan and space for an additional 80mm fan. A PS2 Mini-redundant power supply ensures a minimum amount of system down time. The RCK-408M is also suitable for RAID applications that meet the needs of small and large companies. The front door panel allows companies to put on customized LOGO to branding out. "

Product Features:
• Heavy-duty Steel SECC 1.2t
• Supports ATX motherboard or 14slot Backplane
• (8) 5.25" external Drive bays
• (2) Front LED indicators
• (1) 80mm Ball-bearing fan, with space for one additional 80mm fan
• Optional 18-inch Slide rail
• Optional HDD Mobile Rack
