rack-mount chassis / 19" / 1U / compact



  • Mounting:

    rack-mount, 19"

  • Size:

    1U, compact

  • Other characteristics:

    for harsh military environments, industrial, rugged, high-performance, for CCTV applications, HDD mobile rack with Lock, for mini-ITX motherboards, for industrial automation, 4 drive bays

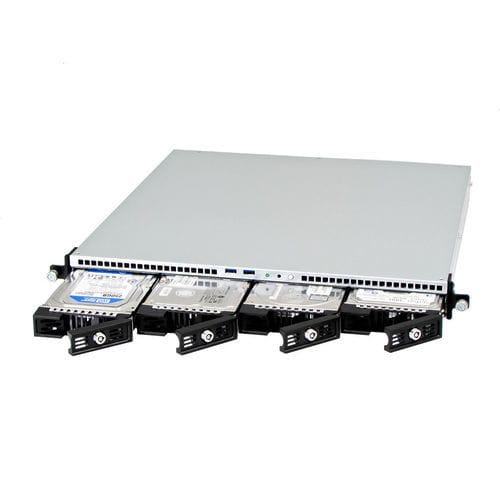

AICSYS ingenious design of RCK-104M, the 1U slim Compact Rackmount Chassis with short depth of 455mm for space critical environment, especially suitable for the system integration of security, Firewall Server, Proxy Server, Surveillance network, VPN, and Gateway system etc. The RCK-104M proves to be a perfect choice for sub-racks and short rack cabinets.

RCK-104M is mechanically designed for the short depth of 455mm which gives consideration to short dimension and a superior heat dissipation up to SIX cooling fans (4cm) protecting from overheating and malfunctions caused by overheating of a system. RCK-104M is a compact slim chassis incorporates ATX computing power supply up to 520W with more versatile functions in Four HDD Mobile Racks for 3.5 or 2.5" SATA hard drives and ONE 2.5” internal space for SSD or HHD to expand your data acquisition storage capacity. System Integrator could take advantage of the expandable storage design for numerous applications that often requires HDD replacement. The supported Mini-ITX motherboard for CPU core i3/i5/i7 processor is ideal for Industrial automation in critical application for controlled automation, visual and video analytics etc.

Product Features:
-Heavy-duty steel construction with only 455 mm in depth
-Support Mini-ITX motherboard
-Support motherboard with onboard SAS port (with optional SAS cable)
-Supports 1U up to 520W ATX power supply
-(2) 4cm ball-bearing cooling fans and optional four more fans
-(4) 3.5" or 2.5 SATA HDD mobile racks
-(1) 2.5" space for SSD or HDD
-(2) Front USB 3.0 ports
