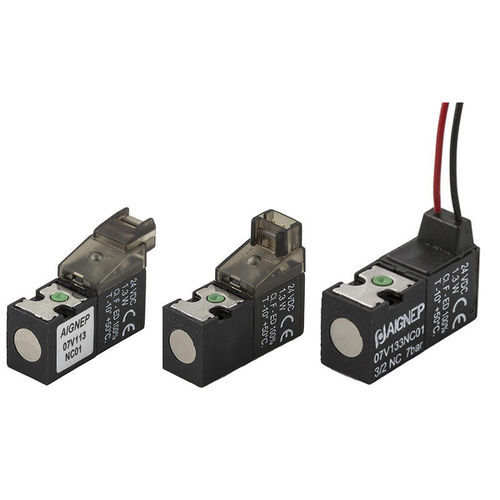

pilot-operated solenoid valve / 3/2-way / NC / NO
07V1 series AIGNEP

{{requestButtons}}

Characteristics

  • Control:

    pilot-operated

  • Ports/positions:

    3/2-way

  • Function:

    NC, NO

  • Medium:

    air

  • Body:

    miniature, IP65

  • Temperature:

    Min.: -5 °C (23 °F)

    Max.: 50 °C (122 °F)

  • Pressure:

    Min.: 0 bar (0 psi)

    Max.: 7 bar (101.5 psi)

  • DN:

    10 mm

  • Voltage:

    12 V, 24 V

Description

The Aignep keeps on enhancing new components, such as the latest "07V" serie of miniature solenoid valves 10mm e 15mm. The valves are made for those requisitions, where high performances in terms of pressure and stream are stated together with small power usage, specifically when the spaces are lessen.

The 07v valves control the stream of air or latent gasses and they can pilot different valves or cylinders. The electrical parts comprise in a copper wire coil covered in a formed nylon-glass cage in order to withstand to high temperature. It has a wide sub-bases and accessories that ensures the buildings of batteries or different desired combinations. It has a maximum cycles per minute of 2700 and all the versions are attached with a manual override.
