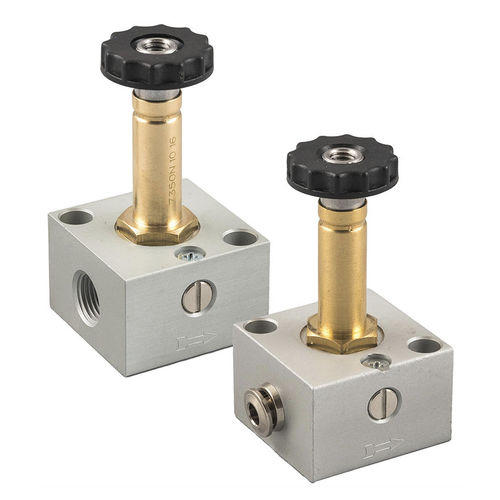

pilot-operated solenoid valve / 3/2-way / NC / NO
07VS series AIGNEP

{{requestButtons}}

Characteristics

  • Control:

    pilot-operated

  • Ports/positions:

    3/2-way

  • Function:

    NC, NO

  • Medium:

    air

  • Body:

    anodized aluminum

  • Other characteristics:

    manually-operated, spring-return

  • Temperature:

    Min.: -10 °C (14 °F)

    Max.: 60 °C (140 °F)

  • Pressure:

    Min.: 0 bar (0 psi)

    Max.: 10 bar (145 psi)

  • DN:

    0.125 in

  • Voltage:

    Min.: 12 V

    Max.: 220 V

Description

Material- Anodised aluminium body
- NBR seals
Threaded1/8 - Automatic diam.4
6 bar flow rate with Δp 1 bar30 Nl/min
Operating pressure0 - 10 Bar
Solenoid voltage24V DC - 12V DC - 24V AC - 110V AC - 220V AC
Minimum power3W - 5VA
Manual controlBISTABLE
Torque of tightening the nut solenoid0.6 Nm
TemperatureMinimum temperature: -10 °C
Maximum temperature: +60 °C
