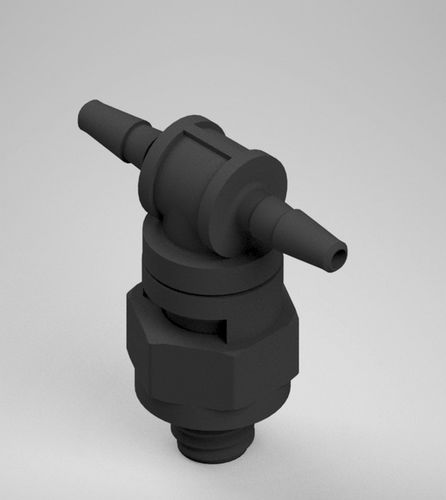

screw-in fitting / barbed / T / pneumatic
F-2155 AIR Logic

{{requestButtons}}

Characteristics

  • Attachment:

    screw-in, barbed

  • Configuration:

    T

  • Applications:

    pneumatic

  • Material:

    polypropylene, nylon

  • Other characteristics:

    swivel, NPT, 360°, molded

  • Diameter:

    0.06 in, 0.09 in, 0.13 in, 0.17 in

  • Operating pressure:

    Min.: 0 psi

    Max.: 125 psi

Description

The Swivel Fittings (Patent #4,946,204) are available in three models, the Straight Swivel, the Swivel Elbow and the Swivel Tee. The swivels are available with barbs for 1/16", 3/32" or 1/8" I.D. flexible tubing. The swivels are available with 10-32 UNF threads, 1/8-27 NPT or 1/4-18 NPT. The unique design (Patent #4,946,204) allows the fitting to swivel 360°. The snap type fitting is sealed with a Buna-N O-Ring. The swivel fittings are precision molded of nylon.
Barb Configuration: Tee
Barb sizes for: 1/16", 3/32", 1/8" and .170" I.D. Tubing
Thread Sizes: 10-32 UNF (1 inch pound torque specification)
Operating Temperatures: 40° to 120° F (5° to 48° C)
Housing Materials: Nylon (black) Polypropylene (clear)
O-Ring Materials: Buna-N, Ethylene Polypropylene, Silicone or Viton
Supply Pressure: 125 psi (max)
