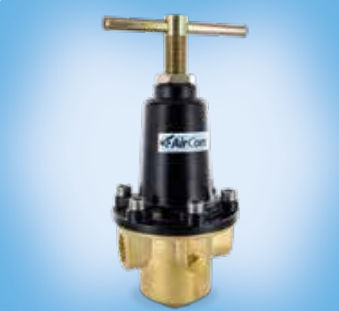

Compressed air back-pressure regulator DBM serieq

for gasmembranePTFE

Back pressure regulators protect pneumatic devices against overpressure. If the pressure exceeds the setpoint,the pressure valve exhausts to the atmosphere until the pressure level is below the setpoint. It is advisable to select the pressure range as near as possible to the maximum setpoint. Media: compressed air, non-corrosive gases or liquids Adjustment: by spindle with locknut for DBM-01 by black plastic knob with snap-lock for DBM-02 by T-handle with locknut for DBM-04 / -08 by hexagonal spindle (spanner size 24 mm) with locknut for DBC-12 / -16 Gauge_port: G1/8 at DBM-01 on both sides of the body, G1/4 from DBC-02 on, screw plugs supplied Body: brass O-rings: NBR/Buna-N, optionally FKM or EPDM Inner_valve: brass Diaphragm: NBR/Buna-N with PTFE coating
