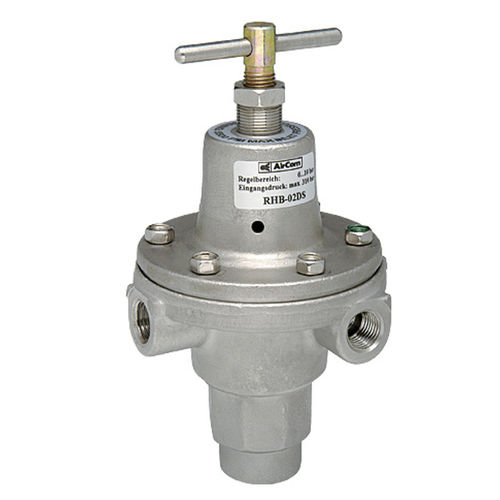

Compressed air pressure regulator RHB-Smembranesingle-stagestainless steel
Add to favorites
Compare this product
Characteristics
- Product
- for compressed air
- Technology
- membrane
- Number of stages
- single-stage
- Material
- stainless steel, nylon, PTFE, NBR
- Applications
- high-pressure, pneumatic
- Other characteristics
- non-relieving
- Pressure
Max.: 35 bar
(507.63 psi)Min.: 0.3 bar
(4.35 psi)- Flow
4,000 m³/h
(141,258.67 ft³/h)- Orifice diameter
0.25 in
- Temperature
Max.: 106 °C
(222.8 °F)Min.: -40 °C
(-40 °F)
Description
Your are now in the overview of an article: RHB-S
Choose a version from the table underneath, please.
Description:
Diaphragm-operated high pressure regulator made of stainless steel.
Media:
compressed air or neutral gases
Adjustment:
by T-handle with locknut
Relieving_function:
non-relieving
Gauge_port:
1/4" NPT on both sides of the body, screw plugs supplied
Mounting_position:
any
Body: stainless steel 316, material no. 1.4401
O-rings: NBR/Buna-N
Diaphragm: Monel 400
Valve_seat: nylon, optionally PTFE
Catalogs
Pressure & Volume Flow
331 Pages
