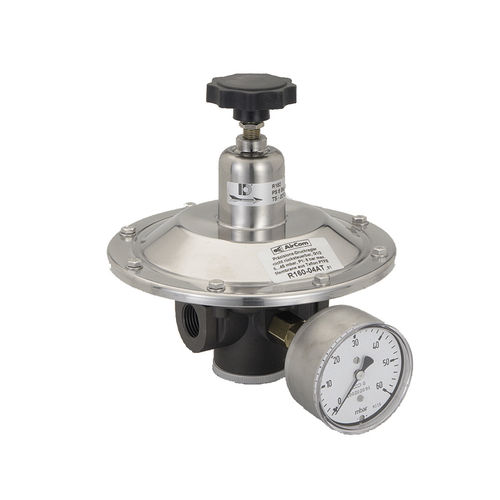

Gas pressure regulator R160 seriesmembranesingle-stagebrass
Add to favorites
Compare this product
Characteristics
- Product
- for gas
- Technology
- membrane
- Number of stages
- single-stage
- Material
- brass, stainless steel, aluminium, PTFE, NBR
- Applications
- industrial
- Pressure
Min.: 5 mbar
(0.07 psi)Max.: 1,200 mbar
(17.4 psi)- Flow
Min.: 1,400 l/min
(369.84 us gal/min)Max.: 28,000 l/min
(7,396.82 us gal/min)- Orifice diameter
Min.: 0.75 in
Max.: 5.5 in
- Temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)
Description
Your are now in the overview of an article: R160
Choose a version from the table underneath, please.
Description:
Low pressure regulator with large diaphragm for good accuracy and high sensitivity.
Media: compressed air or non-corrosive gases
Air_consumption: without constant bleed
Adjustment:
- with handwheel by R161 w
- with adjusting screw on R160-06 to -1A (A, B, C), -12 and -16
- with T-handle by R160-06 to 1A (D, E)
- by hexagon head screw with locknut
Relieving_function: non-relieving
Mounting_position: any
Body: aluminium coated
O-rings: FKM by G1/2, all other NBR/Buna-N, optionally FKM or EPDM
Diaphragm: NBR/Buna-N with PTFE coating
Inner_valve: brass / alumini
Catalogs
Pressure & Volume Flow
331 Pages
