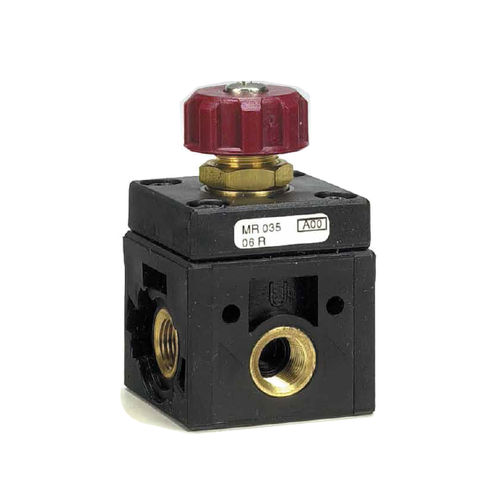

water pressure regulator / single-stage / membrane / modular
035 Aircomp by Stampotecnica

{{requestButtons}}

Characteristics

  • Product:

    for water

  • Number of stages:

    single-stage

  • Technology:

    membrane

  • Other characteristics:

    modular

  • Pressure:

    Max.: 10 bar (145.04 psi)

    Min.: 0 bar (0 psi)

  • Orifice diameter:

    0.13 in

  • Flow:

    250 l/min (66.04 us gal/min)

Description

*Operation with diaphragm.
*Extremely easy to assemble thanks to the special coupling system
*Can be used in air (with relieving and red knob) and water (without relieving and with black knob).
*Can be wall mounted using the relative holes.
*Pressure locking device.
*Pressure regulation range 0÷6 Bar (0÷0,6 MPa).
*Maximum inlet pressure: 10 Bar (1,00 MPa).
*Max. ambient temperature (at 10 bar) 50°C (122°F).
*Max. torque inserts G1/8” IN-OUT: 20 N·m.
*Reference flow rate (P=6,3 Bar - Δp=1 Bar): 250 Nl/min.
*Weight 0,080 Kg.
*Product complies with Directive 2002/95/CE (RoHS).
