- Air pressure regulator
- Aircomp by Stampotecnica

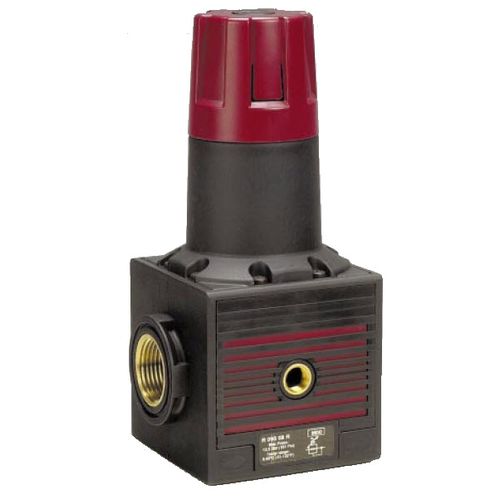

Air pressure regulator 095 seriesmembranesingle-stageindustrial
Add to favorites
Compare this product
Characteristics
- Product
- for air
- Technology
- membrane
- Number of stages
- single-stage
- Applications
- industrial
- Other characteristics
- for high flow rates
- Pressure
Max.: 12.5 bar
(181.3 psi)Min.: 0 bar
(0 psi)- Flow
15,000 l/min
(3,962.58 us gal/min)
Description
Regulator
* Rolling diaphragm.
* The set pressure is kept stable regardless of upstream variations.
* High flow rate with low load losses.
* Downstream overpressure quickly eliminated throug relieving.
* Lockable safety knob.
* Can be wall mounted using the relative brackets.
* Pressure ranges:
0¸4 Bar, 0¸8 Bar (standard), 0¸12,5 Bar
0¸0,4 MPa, 0¸0,8 MPa (standard), 0¸1,25 MPa
* Maximum inlet pressure: 12,5 Bar (1,25 MPa).
* Temperature range: 5¸50°C (41¸122°F).
* Max. torque inserts G1” IN-OUT: 80 N·m.
* Reference flow rate (P=6,3 Bar - Dp=1 Bar): 15000 Nl/min.
* Weight: 1,721 Kg.
Catalogs
No catalogs are available for this product.
See all of Aircomp by Stampotecnica‘s catalogs
