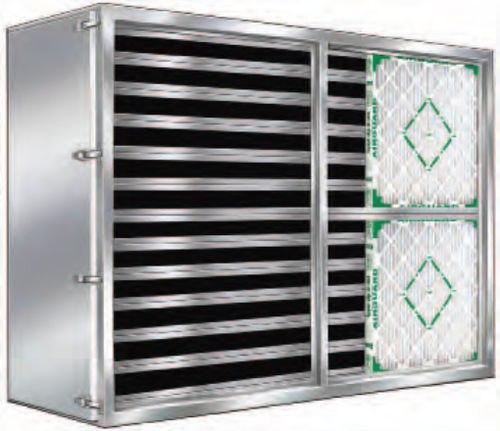

Activated carbon filter box CH series
for gasmetal

activated carbon filter box
activated carbon filter box
Add to favorites
Compare this product


Characteristics

Filter type
activated carbon
Fluid
for gas
Material
metal
Flow rate

2,000 ft³/min
(56.634 m³/min)

Description

16 gauge aluminized steel construction Available with pre-filter and/or final filter tracks Two doors Shipped completely assembled Select from variety of adsorbents - Activated Carbon - Potassium Permanganate - 50/50 Blend 16 gauge aluminized steel construction Completely Factory Assembled - Reduces Installation Cost Airguard carbon housings are constructed as a rugged one piece assembly for side service installations. Completely factory assembled, they are ready for installation in a minimum amount of time when received at the job site. Available with Pre-filters and/or final filters 34" Deep Housings - Equipped with a track to hold 2" or 4" pre-filters or final filters 39-1/8" Deep Housing - Equipped with two tracks to hold 2" or 4" pre-filters and final filters High-Capacity Operation Airguard carbon housings are rated at 500 FPM operation, containing 90 pounds of carbon per 2000 CFM. The trays are 24x24x1 or 12x24x1 (nominal) with a black powder coated finish. Spent trays are refillable with fresh carbon.
