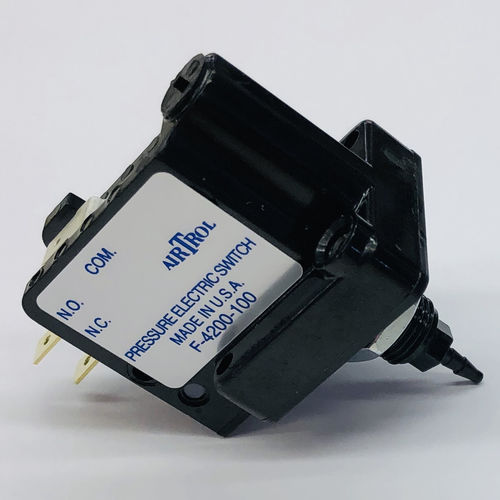

The F-4200-X series vacuum to electric switch is designed for the customer with cost and space limitations, and is available in adjustment ranges from 4″ WC to 30″ Hg full scale. A wide variety of options including gold contacts, factory pre-set and special deadbands, make the F-4200-X series an excellent choice for the O.E.M.
SPECIFICATIONS
CONTACT FORM - Single Pole, Double Throw
TERMINATIONS - .187 Quick-Connect
AGENCY COMPLIANCES - UL/CSA Approved Microswitch
OPERATING SPEED - 25 MSEC
MATERIALS -
Body= - Polysulfone 1 (Wetted Materials)
Diaphragm= - Polyurethane 1 (Wetted Materials)
Spring= - Stainless Steel 1 (Wetted Materials)
Others= - Nylon, Carbon Filled Nylon 1 (Wetted Materials), Acetal
TEMPERATURE RANGE - 40° TO 150° F [4°-66° C]
REPEATABILITY - < +/- 2% F.S. OR .15" Hg, (3.8 mm Hg) whichever is greater, after 10,000 cycles
