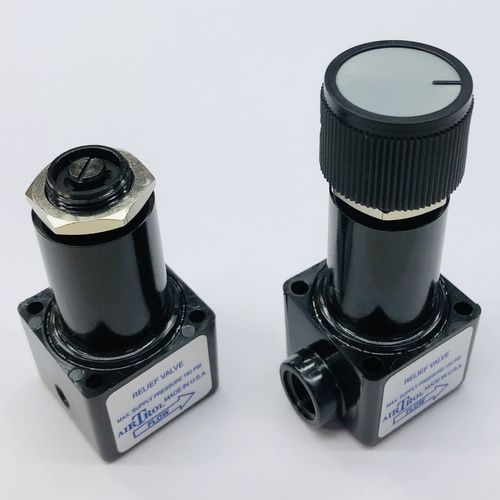

Miniature relief valve RV-5200, RV-5300 series

for airfor gaslow-pressure

The RV-5200 and RV-5300 Series operate as either a relief valve or low flow back pressure regulators. Adjustments are made through a non-rising stem available with an attractive knob, plain to allow insulation of OEM knobs, or flush for “back panel” applications. A typical application would be the use of a unit between a compressor and a load to prevent the compressor from “loading up” when dead-ended. SPECIFICATIONS WETTED MATERIALS - Polysulfone, Silicone, Buna-N TEMPERATURE RANGE - 40° – 150° F (4° – 66° C) REPEATABILITY - < +/- 1% F.S. (Operating characteristics are influenced by flow and outlet restriction) FLOW CAPACITY - 10-32 port= - .6 CFM (16 LPM) @ 30 PSI (207 kPa) set 1/8″ NPT port= - .7 CFM (19 LPM) @ 30 PSI (207 kPa) set
