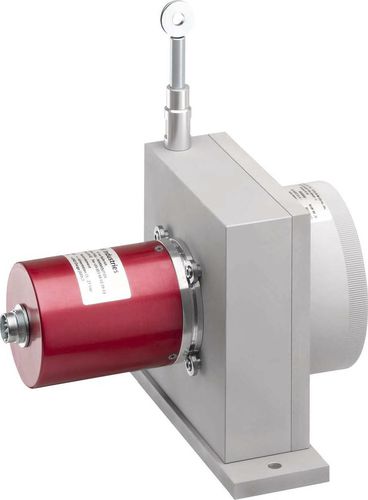

Draw-wire position sensor CD115
magneticpotentiometermechanical

draw-wire position sensor
draw-wire position sensor
Add to favorites
Compare this product


Characteristics

Type
draw-wire
Technology
magnetic, potentiometer, mechanical, optical
Output signal
analog, CANopen, CAN bus, PROFIBUS, SSI, EtherCAT, Ethernet, serial
Protection class
IP65, IP67
Applications
for cylinders, industrial, rugged, for valves, for automotive applications, for robotics, for welding applications
Other characteristics
compact, rugged, absolute, precision, incremental
Measuring range

Min.: 0 mm
(0 in)

Max.: 3,500 mm
(137.8 in)

Description

Linear potentiometer displacement sensors are suitable for motion control and position measurement. This potentiometer is coupled to the drum, so the mechanical movement is converted into a resistance value according to the movement of the mobile. The sensor provides a direct ohmic value on a range going up to 3000 mm. • Range up to 3000 mm • Output signal : • - 1kΩ ; 5kΩ ; 10kΩ • Standard linearity : • - +/- 0,15% (+/-0,10% optional) • Resolution : • - Quasi infinite (depends on the measuring device)

Catalogs

CATALOG
CATALOG
101 Pages
