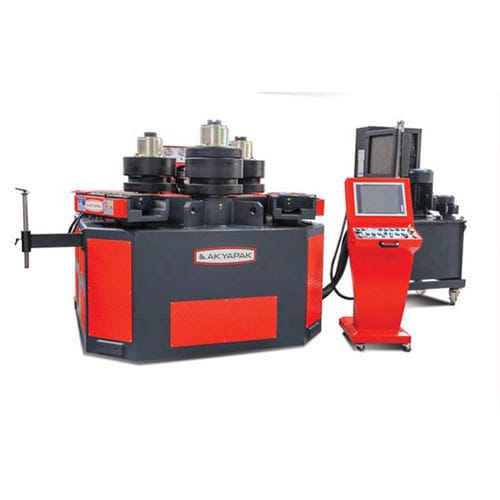

Hydraulic bending machine APK 180
tubeprofilehorizontal

hydraulic bending machine
hydraulic bending machine
hydraulic bending machine
hydraulic bending machine
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Product handled
tube, profile
Displacement
horizontal
Control
CNC
Other characteristics
universal
Bending capacity

100 mm
(4 in)

Roller diameter

460 mm
(18 in)

Overall length

240 cm
(94 in)

Overall width

200 cm
(79 in)

Total height

170 cm
(67 in)

Weight

9,250 kg
(20,393 lb)

Total power

15 kW
(20.4 hp)

Description

AKYAPAK offers extensive alternatives on heavy duty profile bending machines as well. Our machines are strong and reliable with their St-52 weld construction body. Minimum flexion causes less deformation, by the help of our machines’ enlarged roll diameters. By the help of big measurements of bearings, durability and high bending momentum can be obtained. The power of hydraulic cylinders enables to bend the larger parts without difficulty. Practical and universal rollers creates the possibility of easiness for bending various sections, and this feature gives the opportunity of being more powerful and robust. Akyapak Profile Bending Machines are 3 rolls driven. This feature allows to have a possibility to make the high capacity bending processes real. Secondly, our 3 Rolls Driven machine minimizes the slipping of the materials during the bending process. The two bottom rolls are hydraulically driven and they can move independently with each other. Therefore, in comparison with the machines which are top roll drive, the features of our machines enhance the ability of operators and give the opportunity to make prebending process on both edges. Side supporters can move towards three directions to reduce the deformations and to facilitate bending processes, especially with angles and spirals. STANDARD FEATURES Welded steel construction (St-52) body Rolls are driven by 3 separate hydraulic motors Infinitely variable speed of rotation Special steel gears Shafts are made of special steel, hardened and grinded Manual lubrication Guide rolls are hydraulically adjustable Lower rolls are hydraulically moveable up and down Digital display for lower rolls
