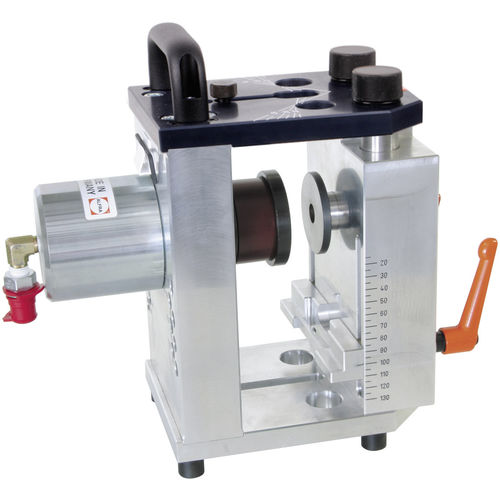

The device consists of a base frame made of special aluminium and a
hydraulic cylinder up to 600 bar.
■ Using bending dies R=11 mm and R=5 mm and height adjustment, all
busbars of up to max. 160 mm width can be bent to various angles.
■ The angle measurement is engraved on the top section.
■ Changing over to bending and hole-punching is easy and simple.
Bending Cu max.: 160 x 12 mm
Bending angle up to: 92°
smallest leg length: 50 mm internal dimension
smallest U-bend: 160 mm internal dimension
smallest Z-bend: 55 mm (material-dependent) internaldimension
Punching Cu max.: Ø 6.6 - 21.5 mm
also longitudinal hole up to max. L = 21 mm
Material thickness Cu max.: 12 mm
Material width up to: 160 mm central
Dimensions L x W x H: 390 x 150 x 330 mm
Weight: 20 kg
Recommended drive type
Electro-hydraulic pump AHP S
Air-hydraulic pump LHP 700
