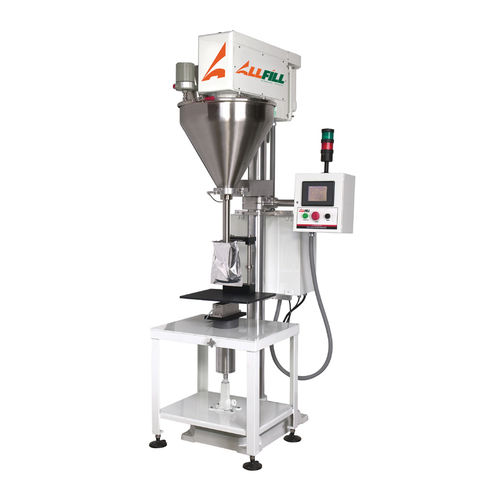

Bag filling machine BS series

for powdersricefor cosmetic products

All-Fill’s Model BS Pouch Auger Filling System fills small pouches with products. This is a “bulk and dribble” application. The operator attaches the small pouch onto a mounting clip. When the empty pouch is in place, a tare weight is established. A pneumatic lift then lifts the empty pouch from the scale to its bulk-fill position (Approximately 1″). A bottom-up fill occurs, ensuring that the amount of dust caused by the product in motion will be minimized. As the bulk fill is in progress, the lift lowers to the scale at a slower speed. A bulk weight is taken at the scale. The lift then raises back up and the bottom-up dribble fill commences. The lift again lowers to the scale, and a final weight is taken. If it is underweight, a second dribble fill occurs. The scale also has a “real-time” weight function to guarantee flexibility and accuracy. Construction - Painted aluminum base. Stainless steel contact parts. Optional sturdy tubular steel frame to support filling head and conveyor. Includes mechanical jack to raise/lower fill head. Aluminum head castings with one-piece stainless steel covers. Heavy-duty clutch-brakes or servo direct drives. Production Rates - Speeds depending on product and operator 7" color touchscreen HMI. A speed adjustable belt drive and continuously-operating fill motor provides the torque and high cycle rates necessary for production filling. Product level control. Slow speed agitation. Motor starters and transformer. Adjustable frequency vibration to settle product in container. Accepts standard All-Fill accessories.
