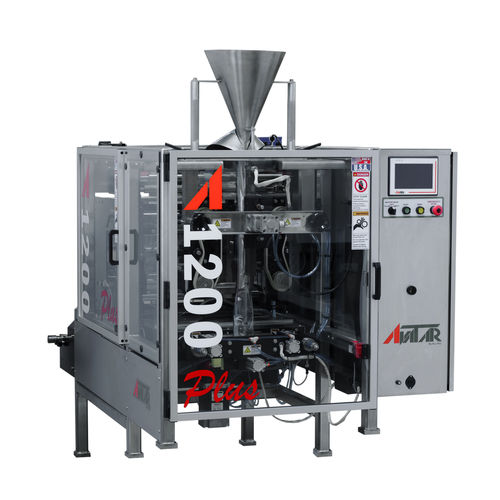

The All-Fill A/1200+ Vertical Form Fill & Seal Bagger can provide accurate, efficient packaging of pillow, gusseted, Doy-Style standup bags and hole-punches as well. It is capable of forming and filling bags measuring 2.5” x 3” to 8” x 14” with volumes ranging from .5 oz to 5 lb, at speeds up to 100 cycles per minute with a servo jaw closure. Supported laminate film and unsupported polyethylene stocks can be easily handled with film thickness up to 0.006.” Features include 7-inch widescreen color HMI, 50 stored routines, and tool-less changeovers. The Model A/1200+ is directly compatible with all filling and checkweighing equipment from All-Fill. Color touch screen controls provide easy setup, testing, and operation from self-explanatory screens and selections. Multiple recipes stored in memory can be used for each product, filling amount, or type. As with all our machines, equipment manufacturing, and software programming are performed in-house for continuous, assured service, support, and assistance.
Package Sizes - 2.5” x 3” to 8” x 14”
Package Weights - Forms and fills 0.5 oz. to 5 lbs.
Tool Size Changeover - Tool-less changeover
Machine Dimensions - 46.5” x 72.75” x 57”
Roll Diameter - 14”
Electrical - 208/240V, Single Phase, 50/60 HZ., 25A (other voltages available)
Pneumatic - Up to 15 SCFM at 70 PSI
Component Types - Common, off-the-shelf components
Routine Storage - PLC control stores 50 routines with a 7” widescreen color HMI
Environment - 50°F (10°C) to 90°F (32°C) up to 95% relative humidity
