Spark optical emission camera Manta G-507
full-colormonochromeCMOS

spark optical emission camera
spark optical emission camera
Add to favorites
Compare this product


Characteristics

Function
spark optical emission
Spectrum
full-color, monochrome
Sensor
CMOS
Interface
GigE Vision

Description

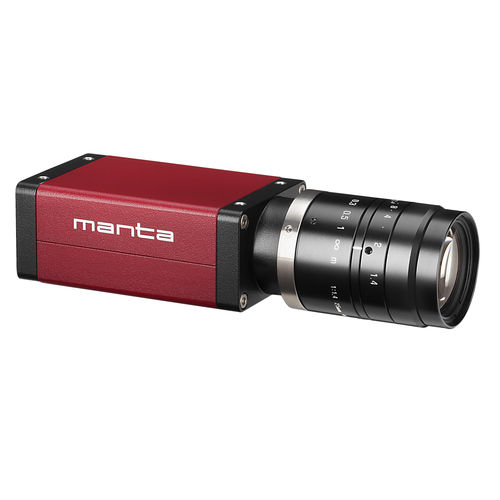

GigE Vision camera, Sony IMX264 CMOS sensor, Pregius global shutter Manta G-507 is a 5.1 Megapixel machine vision camera with a GigE compliant Gigabit Ethernet interface and Hirose port. Manta G-507 incorporates the high quality Type 2/3 (11.1 mm diagonal) Sony IMX264 CMOS sensor with Pregius global shutter technology. At full resolution, this camera runs 23.7 frames per second. With a smaller region of interest, higher frame rates are possible. The Manta G-507 is an ideal replacement for legacy CCD models. Manta is one of Allied Vision's versatile GigE Vision cameras with a wide range of features. Particular highlights are the three look-up tables, sophisticated color correction capabilities, a robust metal housing, and many modular options. By default monochrome models ship with protection glass B 270 (ASG) and color models ship with an IRC Hoya C-5000 IR cut filter.
