night vision camera / infrared / CCD / GigE

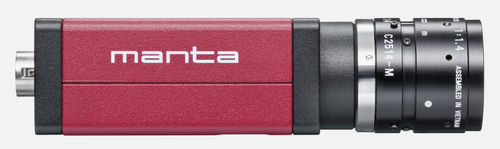

656 x 492 pix, 125 fps | Manta G-031B/C Allied Vision Technologies GmbH

{{requestButtons}}

Characteristics

  • Function:

    for night vision

  • Spectrum:

    infrared

  • Sensor:

    CCD

  • Interface:

    GigE

  • Other characteristics:

    high-speed

Description

The Manta G-031B/C is a fast GigE camera with the ICX618 sensor. This EXview HAD CCD sensor is very sensitive both in the visible spectrum and in the NIR (near-infrared) spectrum. At full resolution, this camera runs 125 fps. With a smaller ROI, higher frame rates are possible.
The camera incorporates three LUTs, sophisticated color correction algorithms, a robust metal housing, and many modular options like angled heads or board level versions. All Manta cameras are optionally available with PoE (Power over Ethernet).

Sony ICX618 EXview HAD CCD sensor (VGA)
Trigger
External trigger event: rising/falling/any edge, level high/low
External trigger delay: 0 to 60 seconds in 1 µs increments
Sync modes
Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO
Modular options
Various IR cut/pass filters
CS-Mount
Board level version
Angled head
White medical housing
PoE (Power over Ethernet)
