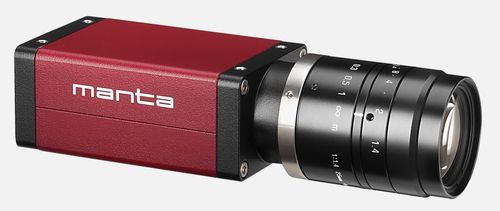

Surveillance camera 1292 x 964 pix, 30 fps | Manta G-125B/C

full-colorCCDGigE Vision

The Manta G-125B/C is a low cost GigE Vision camera with a Sony ICX445 sensor. It runs at 30 fps (full resolution). With a smaller ROI, higher frame rates are possible. This camera incorporates three LUTs, sophisticated color correction algorithms, a robust metal housing, and many modular options like angled heads or board level versions. Manta cameras cover a wide range of imaging applications. The Manta is optionally available with PoE (Power over Ethernet). Sony ICX445 (type 1/3) EXview HAD, 1.2 Megapixels Trigger External trigger event: rising/falling/any edge, level high/low External trigger delay: 0 to 60 seconds in 1 µs increments Sync modes Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO Modular options Various IR cut/pass filters CS-Mount Board level version Angled head PoE (Power over Ethernet)
