Control unit MCSU

control unit
control unit
Add to favorites
Compare this product


Description

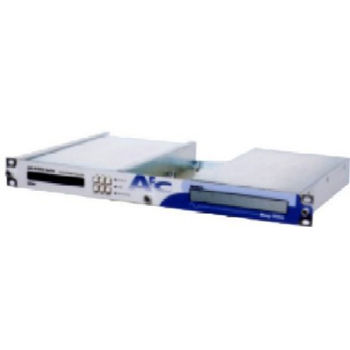

Description Control & Supervisory Unit MCSU It is suitable for R2000 Series Rectifiers use. Features - Control up to 15 R2000 series rectifier modules and monitor 2 banks of bateries in a 24V or 48V or 110V DC power system - System status is indicated by 3 LEDs - SYSTEM OK, ALARM, SMR SHUTDOWN - 16 character, a backlite single-line alphanumeric LCD display normally displays output current, output voltage, and system status - The overall control enables active load sharing, programmable battery charging current limit, battery temperature compensation, and automatic equalization - Local and remote monitoring and control via WinCSU2000 software and modem communications - Size: 1U high, 280mm in depth, and 485mm in width; Mass: <1.5kg - Modem size (max.): 40 x 170 x 280mm(H x W x D)
