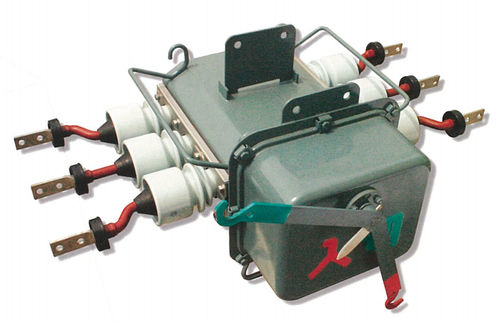

SF6 load-break switch LBSmanualsingle-poleoutdoor
Add to favorites
Compare this product
Characteristics
- Type
- SF6
- Operating mode
- manual
- Number of poles
- single-pole
- Other characteristics
- outdoor, pole-mounted
- Primary current
Max.: 31,500 A
Min.: 600 A
- VAC
Max.: 24 kV
Min.: 15.5 kV
Description
Pole-Mounted Load Break Switch (LBS)
Features & Benefits
Type: Manual, Motor-Control, Remote-Control Operation
Specifications:
15.5kV 600A & 24kV 630A
Short-time withstanding current: 12.5kA (R.M.S.)
Making current: 31.5kA (Peak)
Life cycle:
Electrical: 1000 operations (for rated load current)
Mechanical: 5000 operations (for no-load operation)
Applicable standards:
ANSI C37.71, IEC265
• SF6 gas injection enables compact size
• SF6 arc distinguishing capability for good load-interrupting
• Pressure-interlock device designs to prevent switching under low SF6 gas pressure
• Air-tight, compact, and light-weight design.
• Ease of installation connecting with bushings and insulated cables
