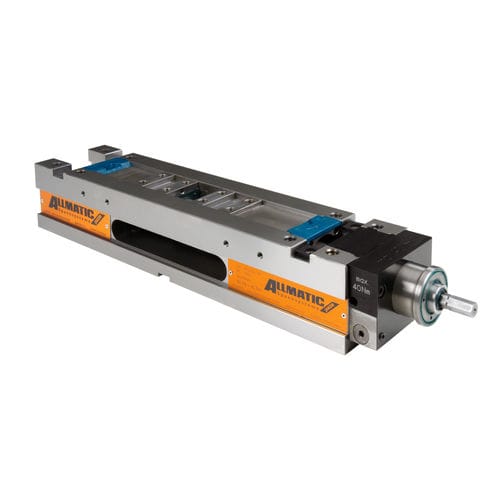

Machine tool vise DUO Plus 125

modulardouble

Product features: Clamping range adjustment for clamping two workpieces of different sizes Reproducible clamping forces enable excellent repeating accuracy of the workpiece position Mechanical power-transfer device Fully enclosed and maintenance-free high-pressure spindle – high chip protection, minimum cleaning requirements, constant clamping forces up to 40 kN Use with a torque wrench – max. 40 Nm Scope of application: Horizontal installation Suitable for conventional clamping and for gripper clamping or a combination of both The support jaws enable a wide range of unmachined parts from flame-cut and sawn materials through to complex castings to be clamped securely and economically. Suitable for materials with a strength of up to approx. 1,000 N/mm²
