Optical data cable Xtra-GuardEthernetinsulatedflexible
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- Ethernet
- Protection
- insulated
- Other characteristics
- flexible
- Nominal voltage
300 V
- Temperature
Min.: -80 °C
(-112 °F)Max.: 200 °C
(392 °F)- Cross-section
Min.: 0.23 mm²
(0 in²)Max.: 1.23 mm²
(0 in²)
Description

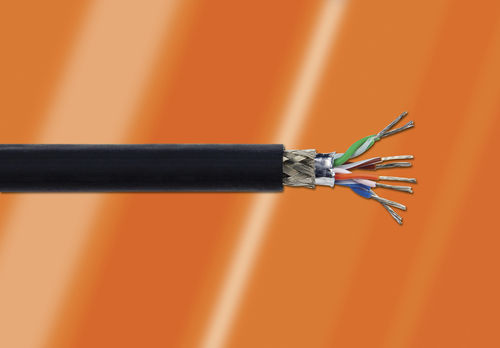

Xtra-Guard® Industrial Ethernet - Rugged connectivity for industrial networking
Alpha Wire's Industrial Ethernet Cat5e cable offers high-quality ethernet communications combined with the durability and temperature range of Alpha's Xtra-Guard 4 TPE jacket. This 24 AWG cable is available in 2 pair and 4 pair constructions.
-50°C to 75°C (PP core) and 105°C (FEP core)
4 times OD (unshielded) and 8 times OD (shielded) cold bend radius per TIA-568-C.2
Meets ANSI/TIA-568-C.2 Cat 5e requirements
UL Type CMR and suitable for use in NFPA 79 applications*
Sunlight and abrasion resistant
High-performance TPE jacket provides three times the low temperature flexibility of PVC
Unshielded, foil shielded, or Supra-Shield® foil + braid for best EMI protection
