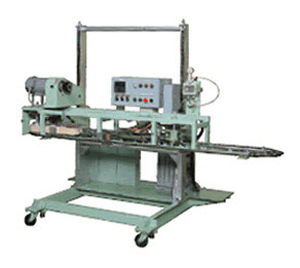

Automatic heat sealer
6 - 14 m/min | PBC-PBS series
PBC-PBS Bag Heat Sealing Machine, Pinch Bag Sealer
PBC-PBS Series automatic heat sealer machines for sealing single and double pinch bags.
Each model utilizes a creasing wheel to define a consistent fold line and a hot air manifold to activate the pre-applied hot melt adhesive.
The PBC-S is a single pinch bag sealer. Once the fold line is defined and the adhesive is activated, the bag top folding section will complete the fold and transfer the bag to a non-stick compression belt section, providing a well fused seal.
The PBC-W heat sealing machine is a double pinch unit. This machine features a hot air pre-heat station, a series of heater bars (the number of bar sets is dependent on required dwell time), and a compression wheel to fuse an inner seal of a multi-wall paper bag with a poly liner. The PBC-W also offers a well fused inner seal, supported by a high strength fold over seal.
The temperature is easily adjusted and monitored for best results and the air intake is regulated and digitally monitored for correct pressure. An alarm will be activated if either the heat or the air is out of range and the PBC-W automatic heat sealer will automatically shut down to avoid machine damage or bad seals.
The bag carrier chain is supported by fixed and spring loaded chain guides to prevent bag tops from slipping and or shifting during the sealing process.
