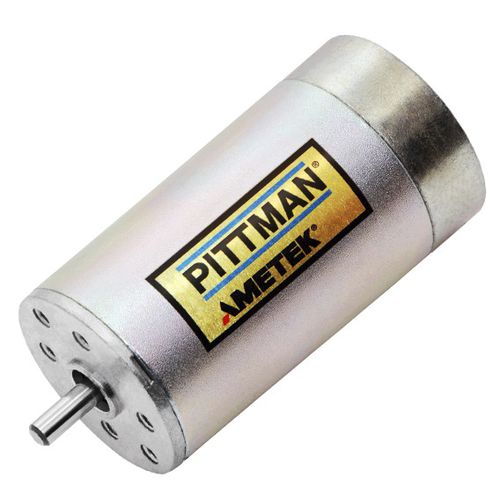

DC motor DC040B seriesbrushed48 Vslotted
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushed
- Voltage
- 48 V
- Configuration
- slotted
- Number of poles
- 2-pole
- Power
Min.: 6 W
(0.008 hp)Max.: 34 W
(0.046 hp)- Torque
Min.: 0.017 Nm
(0.0125 ft.lb)Max.: 0.081 Nm
(0.0597 ft.lb)- Rotational speed
8,000 rpm
(50,265.48 rad.min-1)- Diameter
40 mm
(1.57 in)
Description
The DC040B series brush commutated DC motor is a 40 mm diameter unit offered in 6 lengths with continuous output torques of 0.017 to 0.081 Nm.
Features:
Speeds up to 8,000 RPM possible
DC bus voltage up to 48 Vdc
Eight standard windings - Special windings available
2 pole stator with ceramic magnets
7 slot skewed armature cogging reduction
Sintered bronze bearings - ball bearings available
Copper graphite brushed - RFI suppression available
