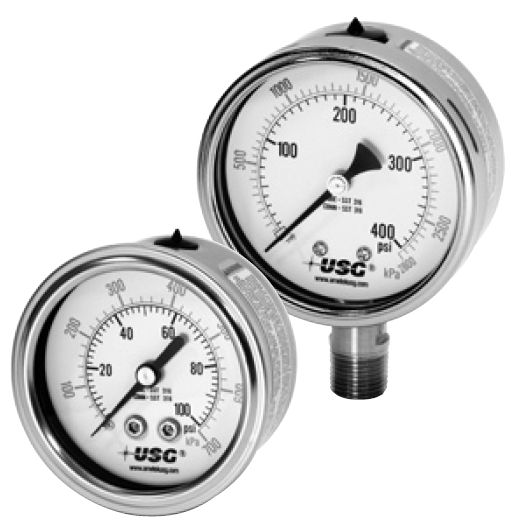

Liquid filled Bourdon tube pressure gauge
max. 6 000 psi | P1550 series
AMETEK U.S. GAUGE
1½”, 2", 2½”, 4"
Liquid Fillable Gauges P-1550 Series
Overview
Series 1550 liquid filled gauges combine low cost and high accuracy with a rugged stainless steel case and brass internals for corrosive and high vibration environments.
Typical applications include: pumps, compressors, HVAC, petrochemical
processing, and power generation.
Series 1550 gauges are available in stem (Model 1555 & 1559) or panel mount (Model 1558) configurations with brass socket; phosphor bronze Bourdon tubes are supplied to meet specific customer requirements.
Series 1550 gauges come in 18 vacuum, compound, and gauge pressure ranges (see specifications). Glycerin is standard fill fluid, with silicone or mineral oil available on request. Dry (unfilled) gauges can also be supplied, off-theshelf, by your local stocking U.S. Gauge distributor.
SPECIFICATIONS
DIAL SIZE
1½", 2", 2½", 4"
RANGES
Vacuum 30"-0 Hg VAC (counterclockwise rotation with increasing vacuum) Compound: 30" Hg VAC 0, 15, 30, 60, 100 psi Gauge: 0-15, 30, 60, 100, 160, 200, 300, 600, 1000, 1500, 2000, 3000, 6000 psi ACCURACY: ±1.6% FS
LIQUID FILL
Glycerin is standard but silicone and mineral oil are available. Dry (unfilled) gauges are available as off-the-shelf stock through local distributors
