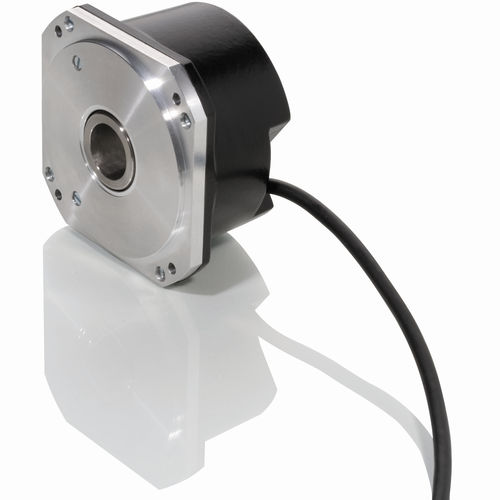

Incremental rotary encoder AMI 1526opticalhollow-shaftwith square flange
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- optical
- Construction
- hollow-shaft, with square flange
- Output signal
- sine wave
- Material
- aluminum
- Protection level
- rugged, IP64
- Applications
- industrial
- Other characteristics
- high-resolution, high-accuracy, with integrated coupling
- Housing diameter
92 mm
(3.62 in)
Description
Pulses
Favorite pulses More pulses on request
9.000 ppr Accuracy up to ±5“ depending on pulses
18.000 ppr
Interpolation internal 2 ... 50 times interpolation optional
Mechanical Data
Shaft Ø 20 and 22 mm, stainless steel
Shaft load axial 10 N, radial 20 N
Rotating speed max. 4.000 rpm
Working temperature 0° C ... +80° C
Vibration 10 g (20 ... 2.000 Hz)
Shock 100 g (11 ms)
Ingress protection IP 64 on shaft
2014/30/EU EMV-rules DIN EN 61000-6-2, DIN EN 61000-6-3
