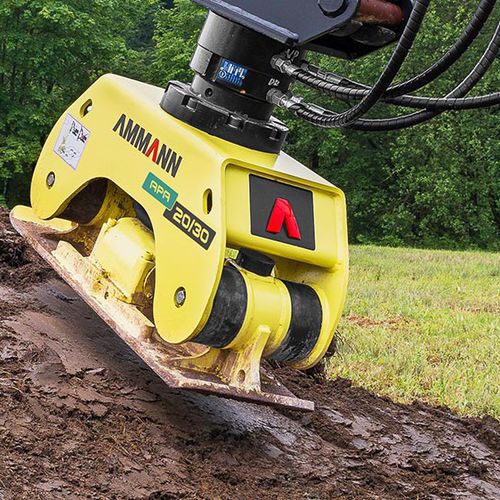

Excavator vibratory plate APA 20/30

At 160 kg, the APA 20/30 is the smallest Ammann Add-On Compactor. It works with mini excavators in the range of 2 tonnes to 5 tonnes, often in gardening and landscaping applications. The APA 20/30 can be mounted in a few minutes and does not require fully hydraulic quick coupling devices. Only two hydraulic hoses are needed. The machine is equipped with a twin-shaft directional exciter featuring a relatively high frequency and low amplitude, which helps protect both the excavator and surrounding buildings. Weights & Dimensions - Metric A = Machine length - 875 mm B = Machine width - 300 mm C = Machine height * - 485 mm Technical specification - Frequency - 60 Hz Centrifugal force - 20 kN Required oil quantity - 40-60 l/min Required operating pressure max - 100 bar Maximum back pressure - 30 bar Recommended size of the carrier - < 5 t
