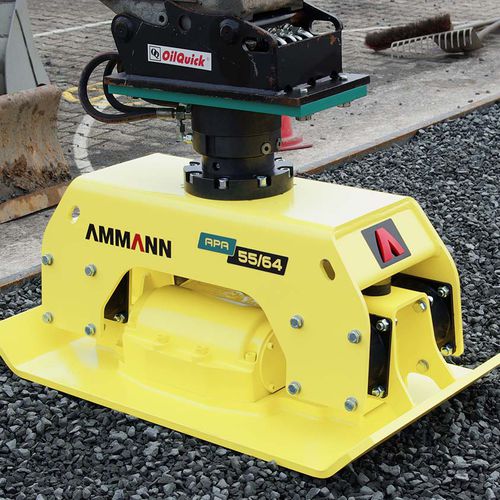

Excavator vibratory plate APA 55/64

With its larger working width of 640 mm, the APA 55/64 is the perfect fit for urban jobsites and for applications in more sensitive surroundings. The compactor is 370 kg, light given its width. It is suited for medium-sized excavators with more than 5 tonnes of operating weight. The compactor can be mounted in a few minutes and does not require hydraulic quick coupling devices. Only two hydraulic hoses are needed. The plate is equipped with a twin-shaft directional exciter featuring a relatively high frequency and low amplitude, which helps protect both the excavator and surrounding buildings. Weights & Dimensions - Metric A = Machine length - 1142 mm B = Machine width - 640 mm C = Machine height * - 580 mm Technical specification - Frequency - 60 Hz Centrifugal force - 55 kN Required oil quantity - 70-110 l/min Required operating pressure max - 150 bar Maximum back pressure - 30 bar Recommended size of the carrier - < 12 t
