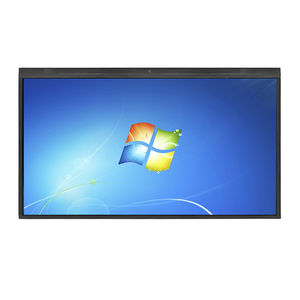

LCD monitor / TFT / multitouch screen / capacitive touch screen
AMG-21IPSP01T1 AMONGO Display Technology(ShenZhen)Co.,LTD

{{requestButtons}}

Characteristics

  • Technology:

    LCD, TFT, multitouch screen, capacitive touch screen, with PCT touch screen, projected capacitive touchscreen, LED backlight

  • Resolution:

    1920 x 1080

  • Mounting:

    open-frame, VESA mounting

  • Other characteristics:

    wide, high-brightness, sunlight-readable, VGA-DVI port, IP65, dust-proof

  • Applications:

    industrial, POS, for digital signage, for industrial machines

  • Screen size:

    21.5

Description

Screen Size:21.5"
Active Display Area (mm):476.64(H)x268.11(V)
Pixel Pitch (mm):0.24825(H)x0.24825(V)
Display Mode:Normally black
Display Resolution (pixel):1920x1080
Contrast Ratio:5000:1
Touch screen(optional):PCAP Touchscreen(10 Points)
Brightness (CD/㎡):1000
Backlight:LED
Viewing Angles (CR =10):178(H)x178(V)
Response Time(Typ.Tr+Tf):16ms
Signal Connector:VGA/DVI/HDMI/Audio/USB/DC2.0
Power Consumption:DC 12V
Dimension(VxHxT):522.6X314.2X46.6
Operating Temperature:0~50°C
Storage Temperature :-20~60°C
Relative Humidity :5(%RH)~90(%RH)

Features:
Full flat surface
PCAP Multi-touch
Sunlight readable
LED Backlight

Application
ATM / VTM / Kiosk / AFC / Non-cash equipment etc
