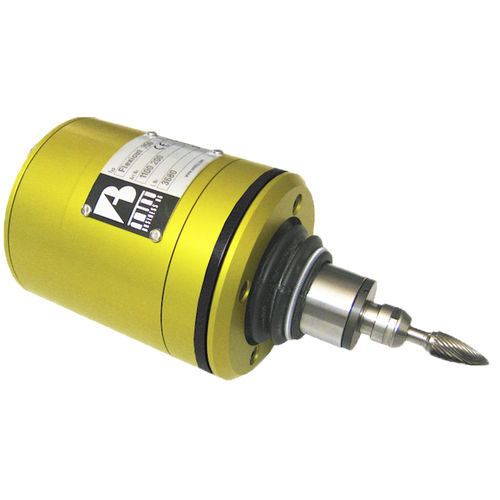

Milling spindle Flexicut 350

deburringfor robotshigh-frequency

The electrical milling tool FLEXICUT 350 can be used for the economical deburring of small and complex parts of metallic as well as nonmetallic material. The spindle is freely compliable in all directions. The pressure against the part edge can be set from the robot program. FLEXICUT 350 Article-No. 1100.350 Power 300 W (0.41 hp) at 35'000 rpm Idling speed 35'000 rpm Max. Speed 60'000 rpm Compliance radial in all directions ± 4.2° / ± 8 mm (at collet) Compliance torque 1.04 Nm (0.77 ft lbs) at 6 bar (87 psi) Compliance force 8 N (1.8 lbs) at 6 bar (87 psi) (at collet) Feed forward rate 5 - 250 mm/sec. Collet Ø 6 mm Weight 2.6 kg (5.7 lb) CONTROLLER 350 Article-No. 5163.200 Input Voltage AC 100 - 240 V, 50/60 Hz, 1.8 A Output AC 33 V, 0 - 1 kHz, 3 Phase, 2.4 A External Control Signal Input: 9 Digital (Photo Coupler), 1 Analog Output: 1 Photo Coupler, 9 MOS Relay, 2 Relay Contact, 3 Analog Degree of protection IP X0 Weight 2.8 kg (6.2 lb)
