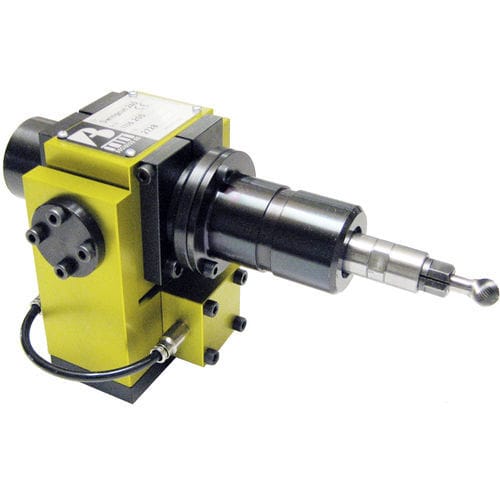

Milling spindle Swingcut 240

deburringfor robotsair-driven

The milling tool SWINGCUT 240 can be used for the economical deburring of small and complex parts of metallic as well as nonmetallic material. The spindle is freely compliable in two directions. The pressure against the part edge can be set from the robot program. Article-No. 1012.200 Power 240 W (0.32 hp) Idling speed 35'000 rpm Compliance radial in two directions ± 3.8° / ± 8.5 mm (at collet) Compliance toque 2.4 Nm (1.77 ft lbs) bei 6 bar (87 psi) Compliance force 19 N (4.3 lbs) at 6 bar (87 psi) (at collet) Feed forward rate 5 - 250 mm/sec. Air consumption 7.5 l/s (15.9 cfm) Collet Ø 6 mm Weight 2.2 kg (4.9 lb)
