Milling spindle Swingcut 470deburringfor robotsair-driven
Add to favorites
Compare this product
Characteristics
- Function
- milling, deburring
- Other characteristics
- for robots, air-driven
- Rotational speed
15,000 rpm
(94,247.78 rad.min-1)- Diameter
Max.: 6 mm
(0.2 in)Min.: 0 mm
(0 in)
Description

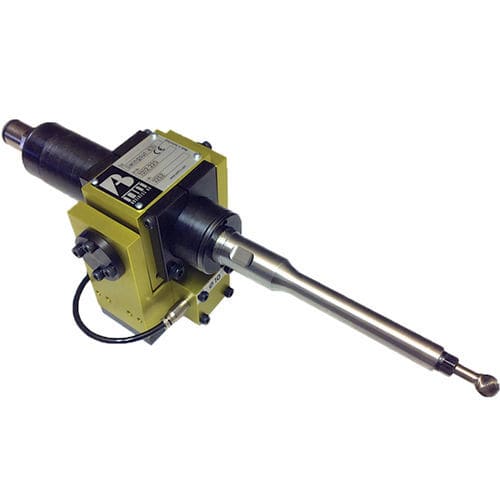

The milling tool SWINGCUT 470 is well suited for deburring in badly accessible areas e.g. bore-intersections. The spindle is freely compliable in two directions. The pressure against the part edge can be set from the robot program.
Article-No.
1012.240
Power
600 W (0.82 hp)
Idling speed
15'000 rpm
Compliance radial in two directions
± 3.8°
Compliance toque
2.4 Nm (1.77 ft lbs) bei 6 bar (87 psi)
Feed forward rate
5 - 250 mm/sec.
Air consumption
17.5 l/s (37.1 cfm)
Collet
Ø 6 mm
Weight
2.5 kg (5.5 lb)
